Borehole camera Foracam

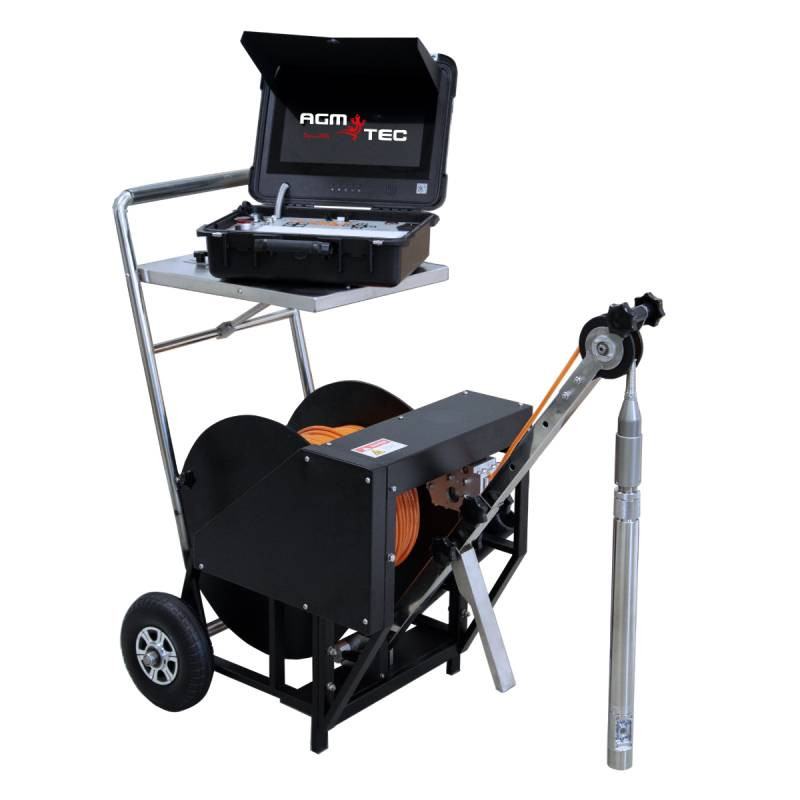

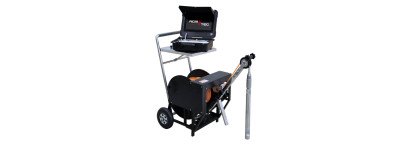

The borehole camera system Foracam can be used for inspection of water wells, mines, caves, pipes.
- Write a review

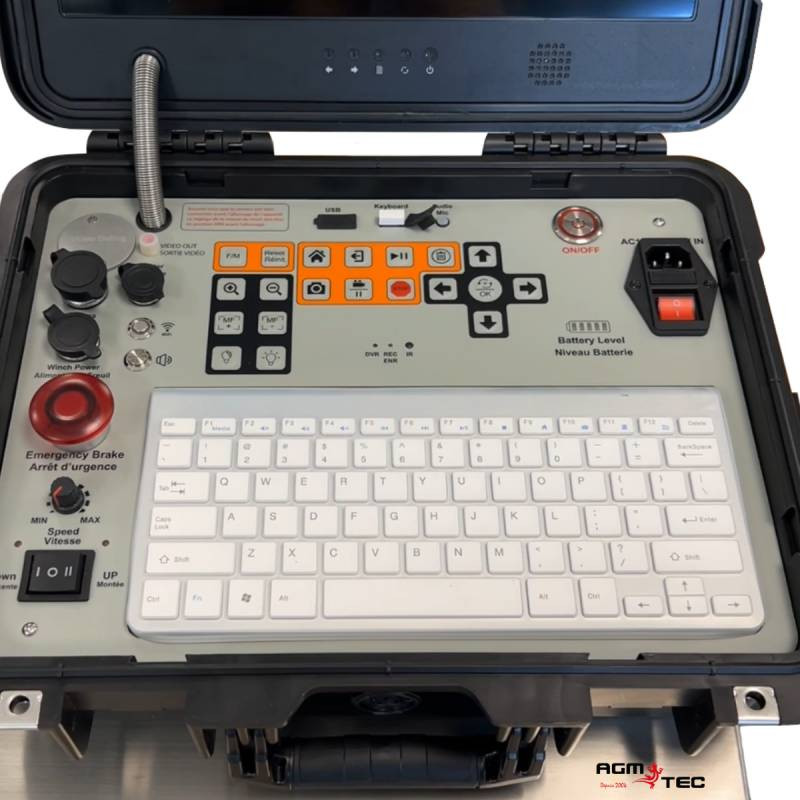

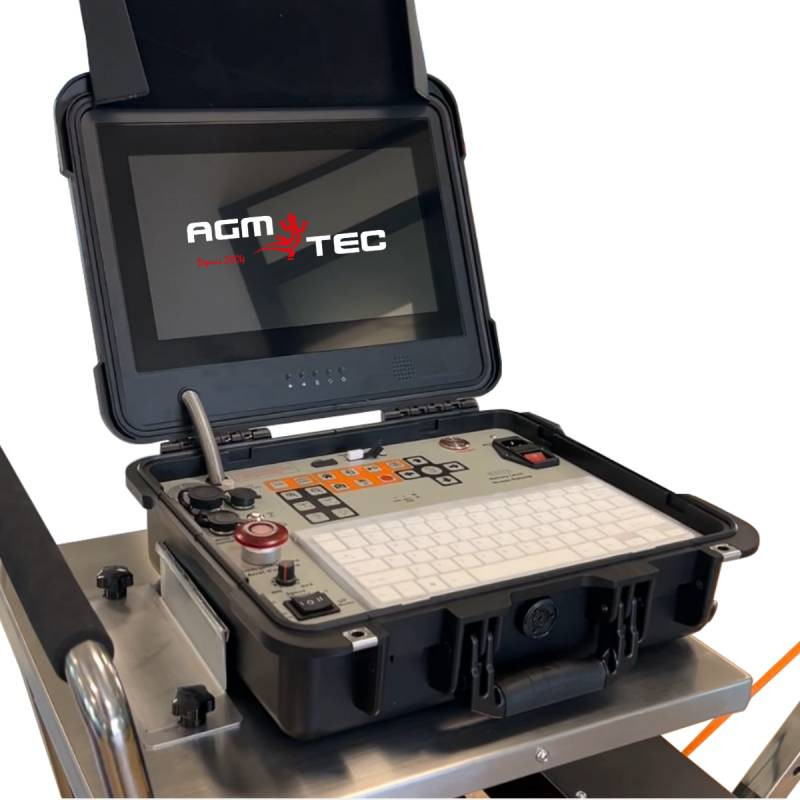

The cameras are controlled from a dedicated surface panel with a 8" video monitor that allow you to capture and reporting the inspection.

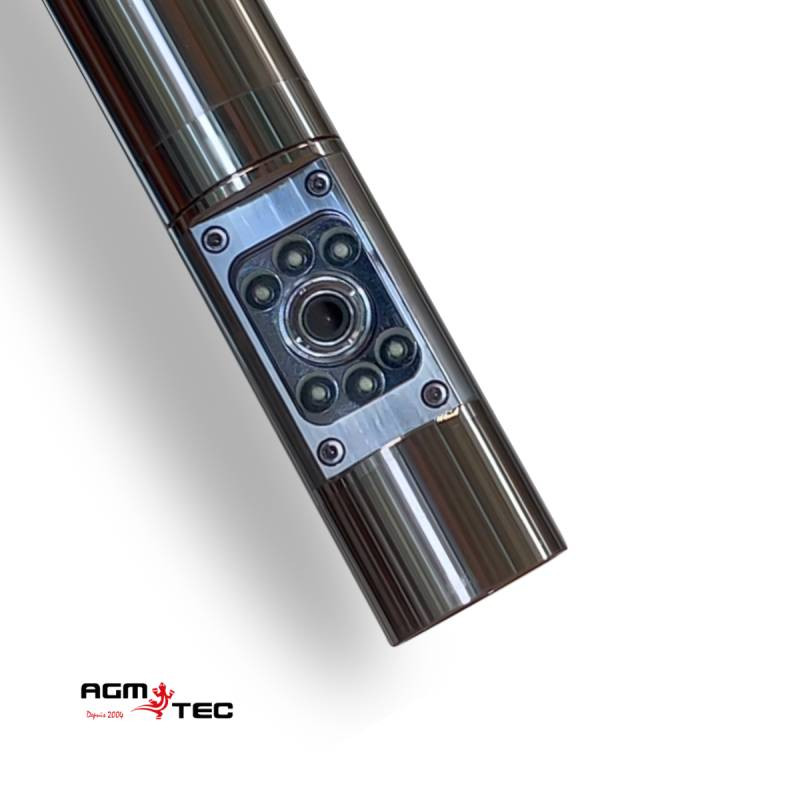

The Foracam can measure and display image orientation . The camera offers the convenience of both downhole and sidewall facility by switching between the radial and axial camera. The radial camera can rotate at 360° infinite rotation.
| Cable length | 100 M (328') |
| Diamètre du câble vidéo | Ø9 mm (0.4') |
| Fonction enregistrement | Vidéo, Audio, Ecrit (port USB, disque dur interne 128Go) |
| Résistance | 50 Bars (490 m colonne d’eau) |
| Températures (min/max) | +5° à +60°C |
| Caméra | CMos couleur |
| Diamètre de la caméra | Ø63 mm (2') |
| Eclairage | 6 LEDs radiale / 6 LEDs axiale |
| Longueur de la caméra | 520 mm (20') |
| Angle de vue caméra | 90° |
| Ecran | 10 pouces |
| Résolution | 720 x 576 px |
| Garantie | 1 an pièces et main d'oeuvre. |
